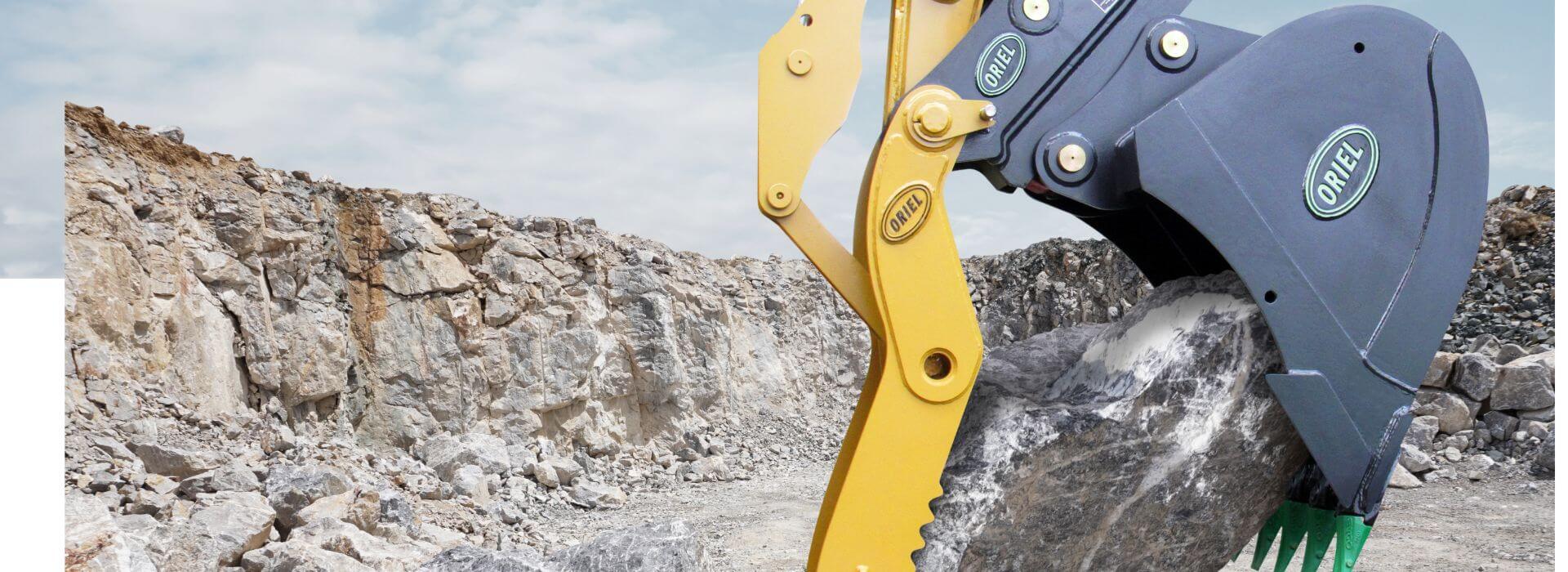

Oriel Progessive-Link Thumb
The Oriel Progressive-Link thumb is built to achieve more than 180° rotation, enabling the operator to pick up objects position closer to the excavator.
Manufacturing a range to suit machine sizes 4,500lbs – 65,000lbs, Oriel’s unique design offers optimal rotation and retraction capabilities.
| Excavator Size Class (lbs) | Oriel Thumb Model | Width (in) | Thumb Tip Radius (in): | Retract Clearance (in) | Thumb Weight (lbs) |
|---|---|---|---|---|---|
| Class 20: (4,500-6,000 lbs)/ |
DMT-PL-02 | 6 | 25 | 11 | 195 |
| Class 30: (6,000-9,000 lbs) |
DMT-PL-03 | 6 | 32 | 11 | 232 |
| Class 40: (9,000-14,000 lbs) |
DMT-PL-06 | 16 | 39 | 19 | 495 |
| Class 80: (14,000-22,000 lbs) |
DMT-PL-08 | 16 | 39 | 19 | 555 |
| Class 140: (22,000-33,000 lbs) |
DMT-PL-14 | 27 | 54 | 21 | 1200 |
| Class 150/160: (33,000-42,000 lbs) |
DMT-PL-18 | 27 | 60 | 21 | 1260 |
| Class 200: (42,000-55,000 lbs) |
DMT-PL-20 | 31 | 69 | 23 | 1650 |
| Class 250: (55,000-65,000 lbs) |
DMT-PL-25 | 32 | 72 | 25 | 1875 |
